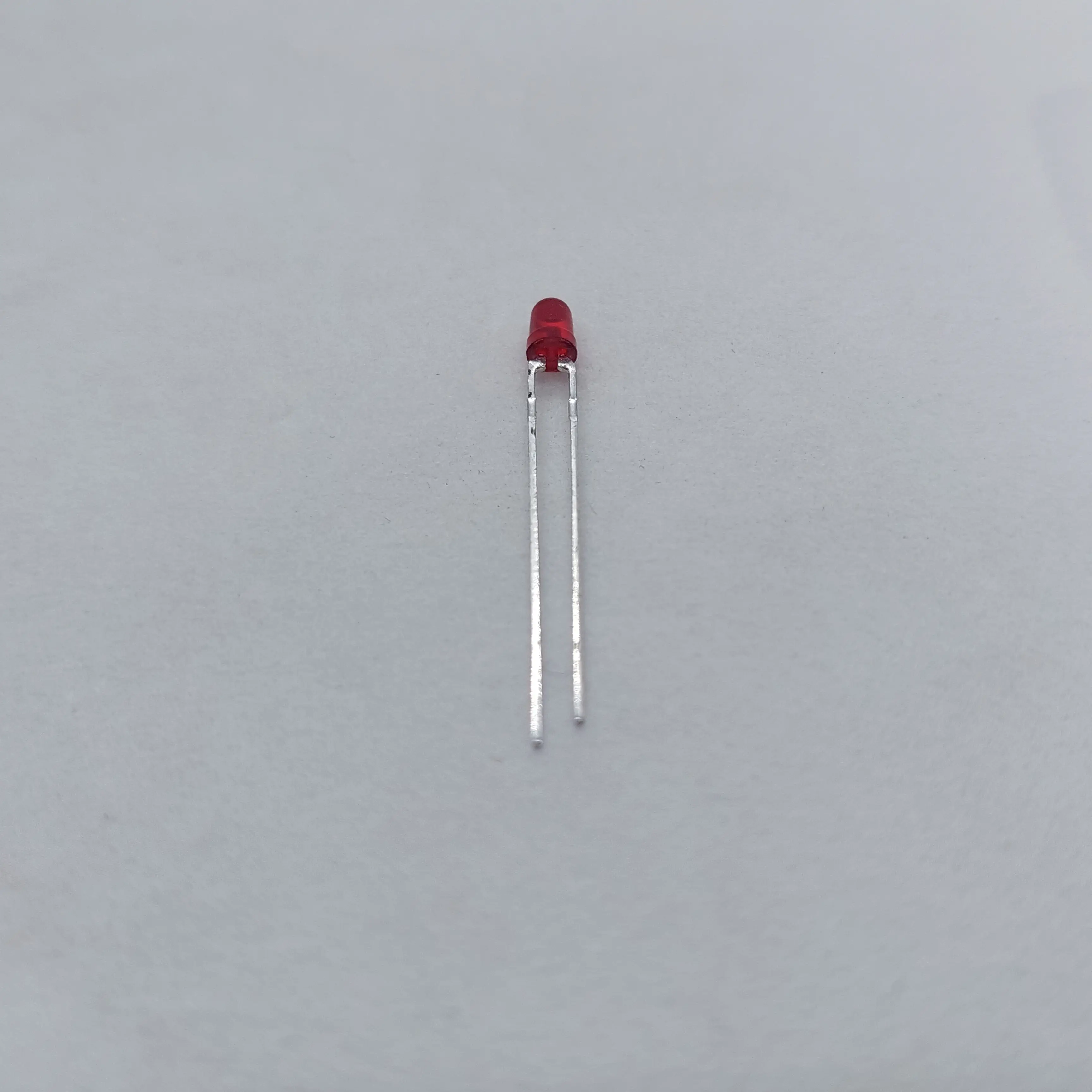

HLMP-1700 HP LED 3MM RED 2.1MCD 626NM
£1.35
HLMP-1700
HEWLETT PACKARD
NEW AND UNUSED
Product Features
LED, 3MM, RED, 2.1MCD, 626NM
Product Details
| Bulb Size: | T-1 (3mm) |
| Forward Current If: | 2mA |
| Forward Voltage: | 1.7V |
| LED Colour: | Red |
| LED Mounting: | Through Hole |
| Lens Shape: | Round |
| Luminous Intensity: | 2.1mcd |
| Viewing Angle: | 50° |
| Wavelength Typ: | 635nm |
| Current If @ Vf: | 2mA |
| Current If Luminous Intensity: | 2mA |
| Dominant Wavelength: | 626nm |
| Dominant Wavelength Typ: | 626nm |
| External Diameter: | 3.18mm |
| External Length / Height: | 4.7mm |
| Forward Current If Max: | 2mA |
| Forward Voltage VF Max: | 2V |
| LED / Lamp Size: | 3mm / T-1 |
| LED Type: | Standard |
| Lead Cross-section Depth: | 0.45mm |
| Lead Cross-section Width: | 0.45mm |
| Lead Length: | 26.67mm |
| Lead Spacing: | 2.54mm |
| Luminous Intensity Min: | 0.8mcd |
| Luminous Intensity Typ: | 2.1mcd |
| Mounting Type: | PCB Through Hole |
| No. of Pins: | 2 |
| Operating Temperature Max: | 100°C |
| Operating Temperature Min: | -55°C |
| Operating Temperature Range: | -55°C to +100°C |
| Opto Case Style: | Radial Leaded |
| PIV Max: | 5V |
| Package / Case: | Radial |
| Peak Forward Current: | 7mA |
| Peak Wavelength: | 635nm |
| Voltage Vf Typ: | 1.7V |
2495 in stock
HLMP-1700
HEWLETT PACKARD
NEW AND UNUSED
Product Features
LED, 3MM, RED, 2.1MCD, 626NM
Product Details
| Bulb Size: | T-1 (3mm) |
| Forward Current If: | 2mA |
| Forward Voltage: | 1.7V |
| LED Colour: | Red |
| LED Mounting: | Through Hole |
| Lens Shape: | Round |
| Luminous Intensity: | 2.1mcd |
| Viewing Angle: | 50° |
| Wavelength Typ: | 635nm |
| Current If @ Vf: | 2mA |
| Current If Luminous Intensity: | 2mA |
| Dominant Wavelength: | 626nm |
| Dominant Wavelength Typ: | 626nm |
| External Diameter: | 3.18mm |
| External Length / Height: | 4.7mm |
| Forward Current If Max: | 2mA |
| Forward Voltage VF Max: | 2V |
| LED / Lamp Size: | 3mm / T-1 |
| LED Type: | Standard |
| Lead Cross-section Depth: | 0.45mm |
| Lead Cross-section Width: | 0.45mm |
| Lead Length: | 26.67mm |
| Lead Spacing: | 2.54mm |
| Luminous Intensity Min: | 0.8mcd |
| Luminous Intensity Typ: | 2.1mcd |
| Mounting Type: | PCB Through Hole |
| No. of Pins: | 2 |
| Operating Temperature Max: | 100°C |
| Operating Temperature Min: | -55°C |
| Operating Temperature Range: | -55°C to +100°C |
| Opto Case Style: | Radial Leaded |
| PIV Max: | 5V |
| Package / Case: | Radial |
| Peak Forward Current: | 7mA |
| Peak Wavelength: | 635nm |
| Voltage Vf Typ: | 1.7V |
